AVAGO HFBR-4505 Fiber Optic Connectors

The AVAGO HFBR-4505 Fiber Optic Connectors is a grey bulkhead/feed-through plastic Fibre Connector provide a snap-in action when mated to Versatile Link components. The simplex connector is colour-coded to facilitate identification of transmitter and receiver connections. Duplex connectors are keyed so that proper orientation is ensured during insertion. If the POF cable/connector will be used at extreme operating temperatures or experience frequent and wide temperature cycling effects, the cable/connector attachment can be strengthened with an RTV adhesive. The AVAGO HFBR-4505 Fiber Optic Connectors is made of a flame retardant VALOX UL94V-0 material. This connector mates two simplex connectors for panel/bulkhead feed-through of HFBR-4501Z/4511Z terminated plastic fibre cable. Maximum panel thickness is 4.1mm. This connector can serve as a cable in-line splice using two simplex connectors. This connector is not compatible with POF duplex, POF simplex latching or HCS connectors.

·Compatible with Avago Versatile Link family of connectors and fibre optic components

·1mm Diameter plastic optical fibre (POF) in two grades

• Compatible with Broadcom Versatile Link Family of connectors and fiber optic components

• 1 mm diameter Plastic Optical Fiber (POF) in 2 grades: - Standard POF with 0.22 dB/m typical attenuation (-40°C to 85°C) - High performance Extra Low Loss POF with 0.19 dB/m typical attenuation (-40°C to 85°C).

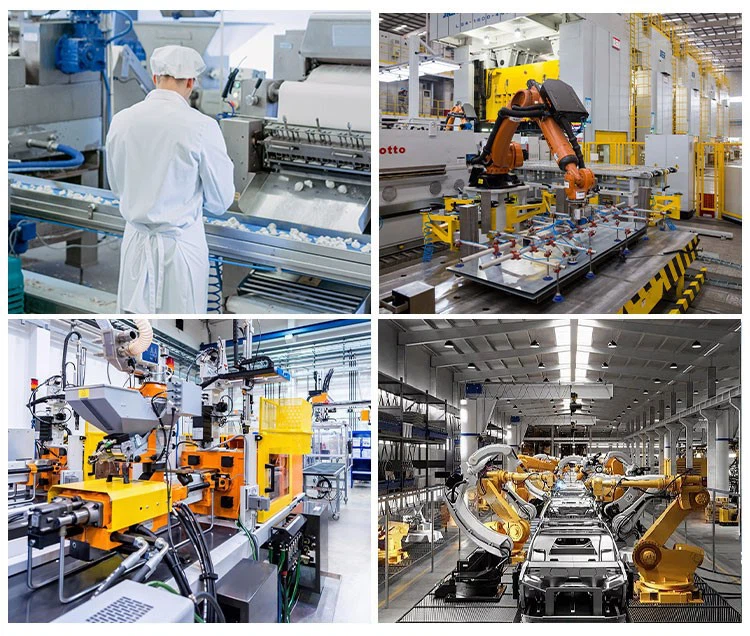

• Industrial data links for factory automation and plant control

• Intra-system links; board-to-board, rack-to-rack

• Telecommunications switching systems

• Computer-to-peripheral data links, PC bus extension

• Proprietary LANs • Digitized video

• Medical instruments

• Reduction of lightning and voltage transient susceptibility

• High voltage isolation
