Side glow fibre makes a virtue of the light leakage which occurs in any bare fibre. Typically, more powerful light sources are used with side glow to produce the best effect. Do bear in mind that side glow is a secondary effect and works best where ambient light levels are subdued – you'll see nothing at all in broad daylight. Where possible, side glow fibre should be looped back to the light source, or daisy-chained between two light sources. Or, if you can't do this and don't plan to use the end point light of the fibers, cap the far end with a piece of reflective foil. If you're unsure whether the fibre will be bright enough for your application, experiment with a short sample before committing yourself to a large purchase.
Parameters
| Item Name | Side Glow Optic Fiber Cable |
| Material | PMMA |
| Length | 100m/roll |
| Diameter | Φ6.0mm |
| Work Temperature | -20~+100celsius degree |
| Optic Loss | 7000DB/KM |
| Wave length range | 380-780 |
|

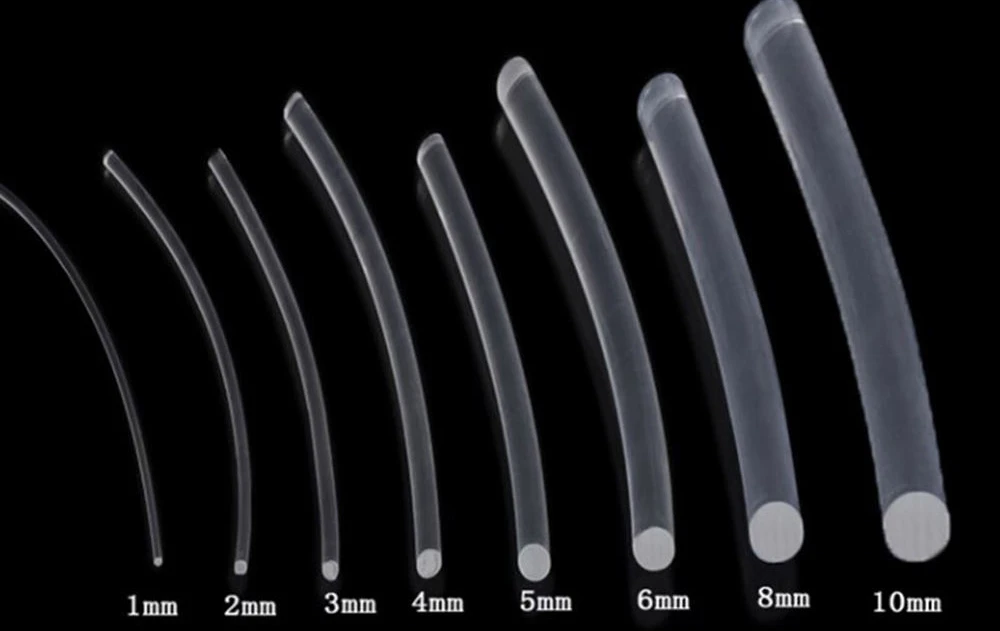

Model specifications |
||||
|
Model |
Inside diameter (mm) |
Outer diameter (mm) |
MQQ (meter) |
Light |
|
RS-GL-1 |
1 |
1 |
100 |
Common |
|
RS-GL-1.5 |
1.5 |
1.5 |
100 |
Common |
|
RS-SGL-1.5 |
1.5 |
1.5 |
100 |
Super |
|
RS-GL-2 |
2 |
2 |
100 |
Common |
|
RS-SGL- 2 |
2 |
2 |
100 |
Super |
|
RS-GL-2.5 |
2.5 |
2.5 |
100 |
Common |
|
RS-SGL-2.5 |
2.5 |
2.5 |
100 |
Super |
|
RS-GL-3 |
3 |
3 |
100 |
Common |
|
RS-SGL-3 |
3 |
3 |
100 |
Super |
|
RS-GL-4 |
4 |
4 |
100 |
Common |
|
RS-SGL-4 |
4 |
4 |
100 |
Super |
|
RS-GL-5 |
5 |
5 |
100 |
Common |
|
RS-SGL-5 |
5 |
5 |
100 |
Super |
|
RS-GL-6 |
6 |
6 |
100 |
Common |
|
RS-SGL-6 |
6 |
6 |
100 |
Super |
|
RS-GL-8 |
8 |
8 |
100 |
Common |
|
RS-SGL-8 |
8 |
8 |
100 |
Super |
|
RS-GL-10 |
10 |
10 |
100 |
Common |
|
RS-SGL-10 |
10 |
10 |
100 |
Super |
|
RS-GL-12 |
12 |
12 |
500 |
Common |
|
RS-SGL-12 |
12 |
12 |
500 |
Super |
|
RS-GL-14 |
14 |
14 |
500 |
Common |
|
RS-SGL-14 |
14 |
14 |
500 |
Super |
|
RS-GL-16 |
16 |
16 |
500 |
Common |
|
RS-GL-18 |
18 |
18 |
500 |
Super |
Features
- Brightness
- Not easy to break.
- Uniform thickness
- No UV or IR Energy
- Nice surface and transparent
- Excellent toughness can bend random
- Virtually no heat
- Long life spam
- Energy saving
Application
For all kinds led fiber optic illuminator engine and decoration such as optical fiber hanging lamps, optical fiber curtains, optical fiber falling waters, optical fiber star ceiling,etc.
Our Exhibition
Our products are recognized by buyers from all over the world.

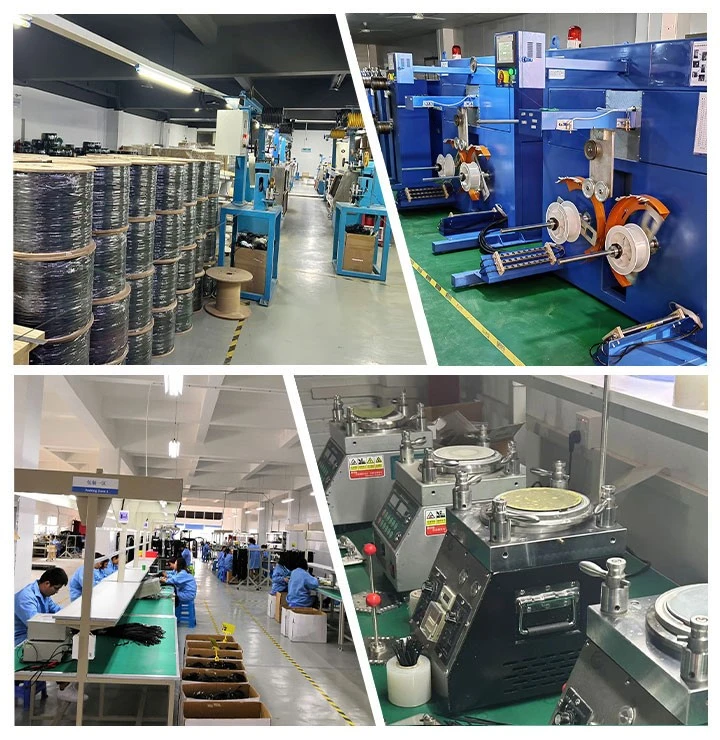

Company Information
Yangzhou RSPOF Technology Co., Ltd. is a high-tech enterprise integrating independent R&D, design, production, and sales of POF plastic optical fiber cable products. Our current product series includes plastic optical fiber cables, data communication jumpers, AVAGO cables, MOST cables, Lighting fibers, and peripheral connecting lines etc. Our products take the lead roles in the POF application fields of data transmission, industrial control, power control, industrial automation, automobile intelligence, etc. In the process of development, our company has passed "ISO9001", "CE", and " ROHS" professional certifications.
We are committed to the construction of a talented Team. Always adhere to people-oriented. Win-win cooperation with our cooperation partners. Determined to provide global customers with high-quality, reasonable prices, and life-long after-sales service products. In future development, we will focus on customer demands, constant innovation, and seek long-term cooperation with partners. We would stand on solid ground and keep improving. Become a world-leading brand technology manufacturer in the market.
