Products Description
Fiber patch cables are the thin, flexible fibers of glass that carry data, telephone conversations and emails high speed all over the world in a matter of seconds with much less interference than copper patch lead. Fibre Optic cables need less amplification to boost signals so they travel better over longer distances.

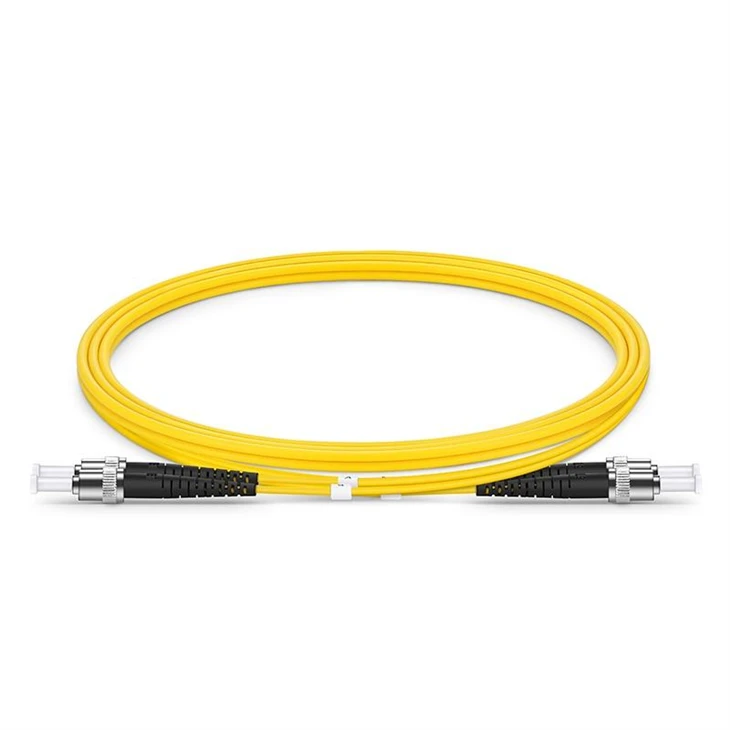

OS1 / OS2 single mode fiber optic patch leads provide the connection from Ethernet 10Mbit/s to 10Gbit/s Gigabit Ethernet, they are the cost-effective way to replace your copper-based patch leads.Single mode Fiber Optics leads is the cost-effective way of your cabling solution.
Specification
|
Connector Type |
ST-ST |
Polish Type |
UPC/UPC |
|
Fiber Mode |
OS2 9/125μm |
Wavelength |
1310/1550nm |
|
Insertion Loss |
≤0.3dB |
Return Loss |
≥50dB |
|
Fiber Grade |
G.657.A1 (Compatible with G.652.D) |
Minimum Bend Radius |
10mm |
|
Attenuation at 1310 nm |
0.36 dB/km |
Attenuation at 1550 nm |
0.22 dB/km |
|
Fiber Count |
Duplex |
Cable Diameter |
2.0mm |
|
Cable Jacket |
PVC |
Polarity |
A(Tx) to B(Rx) |
|
Operating Temperature |
-20~70°C |
Storage Temperature |
-40~80°C |
Features
Application
This 9/125 OS2 single mode fiber optic cable is ideal for connecting 1G/10G/40G/100G/400G Ethernet connections. It can transport data for up to 10km at 1310nm, or up to 40km at 1550nm.It can also save more space for your high density cabling in data centers, enterprise networks, complete room, server farms, cloud storage networks, and any places fiber patch cables are needed.
Cross-connect patching
Backbone application in building
Termination enclosure for equipment patching
Equipment to equipment patching
Supports high-speed multi-channel data, voice & video applications
