Products Description
FTTH drop cable is a reliable fiber optic cable designed specifically for the last-mile connection in Fiber-to-the-Home networks.
It offers excellent durability, low attenuation, and high tensile strength, ensuring stable and high-speed internet performance.
Its compact and lightweight design makes it easy to install, whether indoors or outdoors, and it is suitable for a wide range of residential and commercial applications.
SPECIFICATION
|
Item |
Description |
|
No. of Fibers |
1 / 2 / 4 / 6 / 8 / 12 Cores |
|
Fiber Type |
Single Mode: G652D, G657A1, G657A2 |
|
Fiber Color Code |
Blue / Orange / Green / Brown / Grey / White / Red / Black / Yellow / Purple / Pink / Aqua |
|
Outer Diameter of Fiber Coating |
250μm |
|
Strength Member |
FRP / KFRP / Solid Steel Wire |
|
Outer Jacket Material |
LSZH (Low Smoke Zero Halogen) |
|
Jacket Color |
Black or White |
|
Cable Size (W×H) |
2.0mm × 5.0mm |
|
Operating Temperature |
-10°C ~ +75°C |
|
Short-Term Tension Load |
600N |
|
Long-Term Tension Load |
300N |
|
Maximum Crush Resistance |
500N / 100mm² |
Feature Details
Strength in Any Weather: FRP/KFRP or solid steel wire reinforcement ensures excellent performance against mechanical stress, strong winds, and temperature extremes.
Flexible Fiber Type Options: Supports industry-leading G652D and bend-insensitive G657 series for optimized network design.
Easy to Install: Lightweight yet rugged design minimizes installation labor and maximizes deployment efficiency.
Eco-Friendly Material: LSZH jacket reduces toxic fume emission in case of fire, ensuring higher safety in residential and commercial zones.
Wide Application Range: Versatile enough for both urban and rural fiber access networks.
Application Details

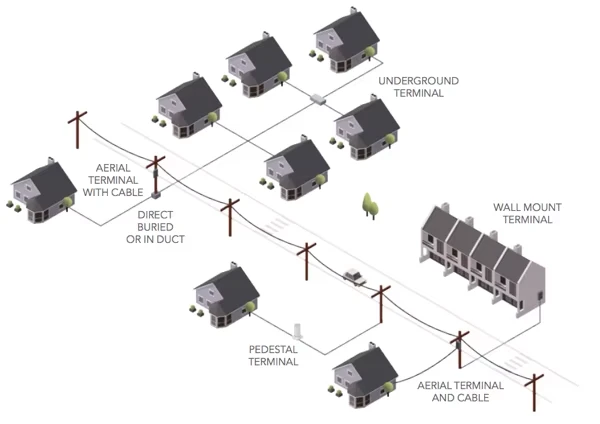

FTTH Access Network Construction: Ideal for final connection to homes or offices, providing high-speed broadband services.
Aerial Outdoor Deployment: Designed for pole-to-building or pole-to-pole installations where self-supporting strength is critical.
Industrial Fiber Cabling: Suitable for use in outdoor manufacturing plants, data hubs, and smart grid fiber networks.
Campus Networks: Reliable infrastructure support for university, hospital, or government campuses requiring stable outdoor fiber backbones.
Rural and Remote Area Internet Expansion: Perfect for extending fiber optic services to challenging, weather-exposed terrains.
Exhibition
Certifications
