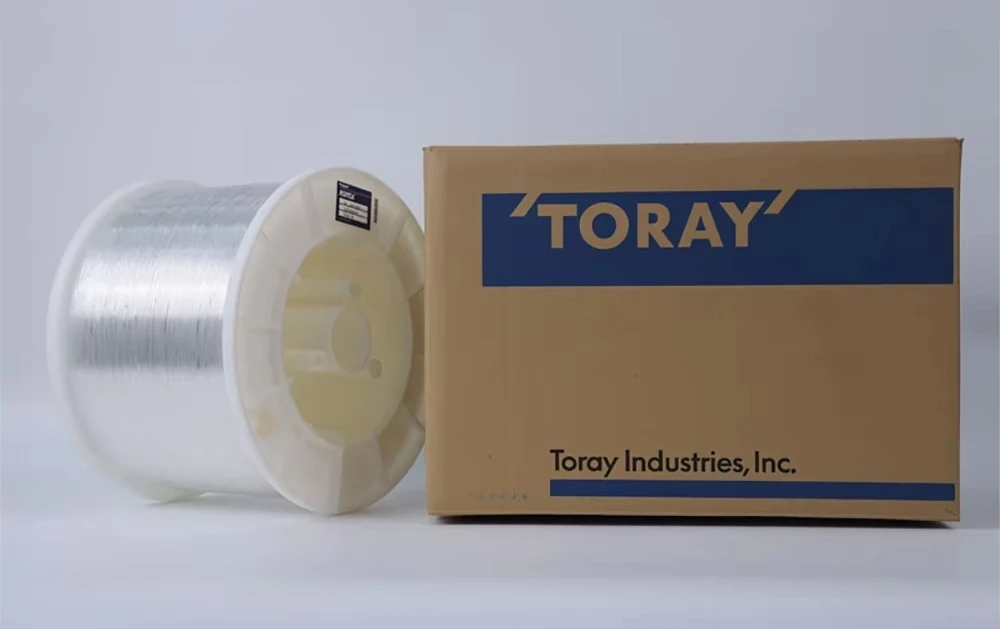

TORAY Communication Optical Cable PMMA Fiber
Toray industrial-grade, general-purpose 1.0mm simplex fiber.
Used in lighting and decoration, telecommunications, industrial, automotive, and medical illumination and endoscope applications.
Basic parameters
|
Manufacturer |
Toray |
|
Core Diameter (mm) |
1.00 |
|
Fiber Type |
Simplex |
|
Core Type |
Single |
|
Jacket Type |
Unjacketed |
|
Core Material |
Polymethyl Methacrylate |
|
Operating Temp – High (Celsius) |
85 |
|
Operating Temp – Low (Celsius) |
-55 |
|
Numerical Aperture |
0.46 |
|
Attenuation (dB/m) @ 650nm |
0.15 |
|
Product Type |
Core Diameter(mm) |
Roll length(M) |
|
PG-FB250 |
Φ0.25 |
12000 |
|
PG-FB500 |
Φ0.5 |
6000 |
|
PG-FB750 |
Φ0.75 |
2700 |
|
PG-FB1000 |
Φ1.0 |
5250 |
|
PG-FB1500 |
Φ1.5 |
700 |
|
PG-FB2000 |
Φ2.0 |
1290M/2ROLL |
|
PG-FB3000 |
Φ3.0 |
150 |
Product Features
1. No electromagnetic radiation, no electric noise, strong anti-interference ability.
2. Light weight, good toughness, strong vibration and crack resistance, durable and reliable.
3. Good confidentiality, safety and reliability.
4. High bandwidth, high speed, high performance.
5. Good coupling and strong light guiding ability.
6. Easy to install, no need for fusion welding, can be cut by yourself.
7. Waterproof, moisture-proof, anti-magnetic and anti-lightning ,can meet the requirements of specific occasions.
Data sheet
|
Item |
PFU-UD1002-22-V (Specification) |
GHCP4002 (Specification) |
|||||
|
Min |
TYP |
MAX |
Min |
TYP |
MAX |
||
|
Optical fiber |
Core Material |
Polymethyl-methacrylate |
Polymethyl-methacrylate |
||||
|
Clad Material) |
Fluorinated polymer |
Fluorinated polymer |
|||||
|
Core Reflective Index |
- |
1.492 |
- |
- |
1.492 |
- |
|
|
Clad Reflective Index |
- |
1.419 |
- |
- |
1.402 |
- |
|
|
Reflective Index Profile |
阶跃型 |
阶跃型 |
|||||
|
Numerical Aperture(NA) |
- |
0.46 |
- |
- |
0.51 |
- |
|
|
Core Diameter) μm |
935 |
980 |
1025 |
920 |
980 |
1040 |
|
|
Cclad Diameter) μm |
955 |
1000 |
1045 |
940 |
1000 |
1060 |
|
|
Jacket |
Material |
polyvinyl chloride |
chlorinated polyethylene |
||||
|
Diameter |
2.2± 0.07 |
- |
4.4± 0.1 |
2.2± 0.1 |
- |
4.4± 0.1 |
|
|
Color |
gray / black |
black |
|||||
|
|
With black print marking |
With blue print marking |
|||||
|
Indication of UL style NO. |
N0.5313 |
N0.5310 |
|||||
Application
For all kinds led fiber optic illuminator engine and decoration such as optical fiber hanging lamps, optical fiber curtains, optical fiber falling waters, optical fiber star ceiling, Illumination and decoration of a hotel, KTV, bar, car, public building and apartment, home textiles etc. Also for large screen optic fiber display. Besides, signal transmission purpose is also frequently found.
Flexible light transmission, optical fiber decoration illuminated colorful and vivid visual effect.
