POF is similar to traditional glass fibre transmitting light/data through the core of the fibre. However POF assemblies have a core size in some cases 100x that of glass fibre. The increased core diameter allows 96% of the core to transmit signal from point-to-point, making it an ideal material for signal transmission over short distances.
POF assemblies possess special characteristics that make this product an ideal solution for applications which traditional glass fibre products are not well suited. For applications requiring a very tight bend radius, POF products generally bend to 25mm with no excessive attenuation. POF products also have a very wide tolerance for scratching and contamination from the field. This tolerance allows the product to perform at acceptable level despite some compromise in physical condition. Plastic optical fibre products are typically used in medical, automotive, home networks, digital audio/video interfaces, signs/illumination, instrumentation, and automation.
Product List
|
Product Code |
Core OD(mm) |
Cable OD(mm) |
Attenuation (dB/km) |
Working Temperature |
Fire resistance |
Spool Length (Miroil) |
|
RS-1000-1T |
1.0 |
1.0*2.2 |
≤200 |
-55℃-90℃ |
No |
1250 |
|
RS-1000-2T |
1.0 |
1.0*2.2*4.4 |
≤200 |
-55℃-90℃ |
No |
1250 |
|
RS-1000-1TF |
1.0 |
1.0*2.2 |
≤200 |
-55℃-90℃ |
UL VW-1 |
1250 |
|
RS-1000-2TF |
1.0 |
1.0*2.2*4.4 |
≤200 |
-55℃-90℃ |
UL VW-1 |
1250 |
Specifications
|
Core Diameter: |
1000 um |
|
Wavelength Range: |
525 – 650 um |
|
Fiber Core Material: |
Plastic |
|
Cable Length: |
500 m |
|
Fiber Core Material: |
Polymethyl Methacrylate Resin |
|
Cladding Material:: |
Fluorinated Polymer |
|
Jacket Material And Color:: |
Polyvinyl chloride (Black) |
|
Fiber Counts:: |
2 |
|
Outer Diameter:: |
2.2x4.4 ± .07 mm |
|
Fiber Tensile Strength:: |
110 N |
|
Approximate Weight:: |
10 g/m |
|
Core Refractive Index:: |
1.49 |
|
Refractive Index Profile:: |
Step-index |
|
Numerical Aperture:: |
0.50 |
Features
- Compatible with the Broadcom Versatile Link family of connectors and fiber optic components as transmitters and receivers
- 1mm POF available in 1 grade with 0.19 dB/m typical attenuation (-40°C to +85°C)
- Halogen-free.
- Flame-retardant
Applications
- Industrial Data Links for Factory Automation and Plant Control
- Intra-system Links; Board-to-board, Rack-to-rack
- Telecommunications Switching Systems
- Computer-to-peripheral Data Links, PC Bus Extension
- Proprietary LANs
- Digitalized Video
- Medical Instruments
- Reduction of Lighting and Voltage transient Susceptibility
- High Voltage Isolation

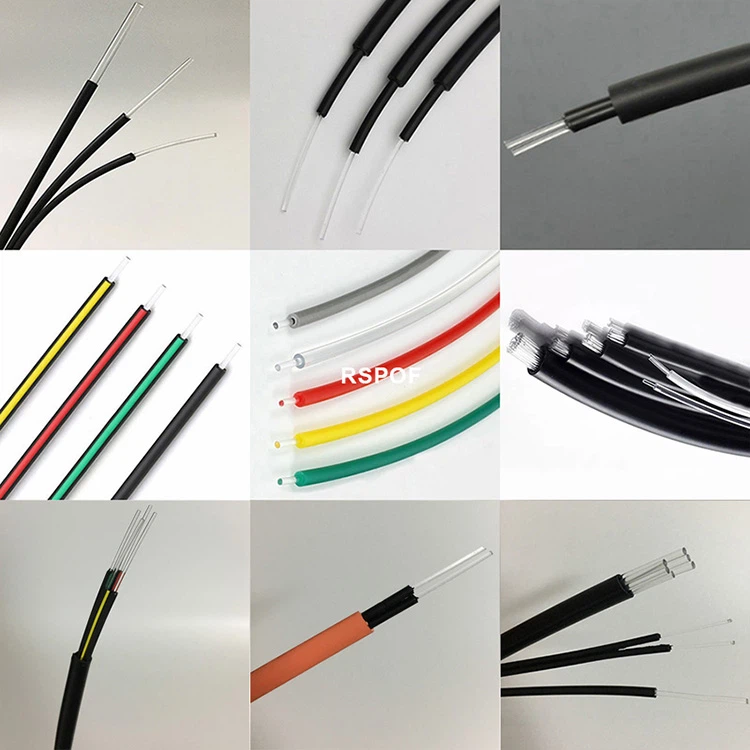

Our company also has other specifications of POF optic cables and also accepts customized.
