Indoor Simplex Cable

Products Description Indoor Simplex Cable is a type of optical fiber cable specifically designed for indoor use. It features a simple structure, typically consisting of a single optical fiber core, a buffer layer, a strengthening member, and an outer jacket. The buffer layer provides protection...

Send Inquiry

Description

Technical Parameters

Products Description

Indoor Simplex Cable is a type of optical fiber cable specifically designed for indoor use. It features a simple structure, typically consisting of a single optical fiber core, a buffer layer, a strengthening member, and an outer jacket. The buffer layer provides protection to the delicate fiber core, preventing it from being damaged by external forces. The strengthening member, usually made of materials like amid yarns or fiberglass, enhances the cable's tensile strength, allowing it to withstand certain pulling forces during installation. The outer jacket, which is often made of flame-retardant and halogen-free materials, not only offers mechanical protection but also meets the safety requirements of indoor environments, such as resistance to fire and low smoke emission. This cable is widely used in indoor communication systems, including building wiring, data centers, and local area networks, where reliable and high-performance data transmission is essential. Its simplex design means it contains only one optical fiber, making it suitable for applications that require a single transmission path, such as point-to-point connections between devices.

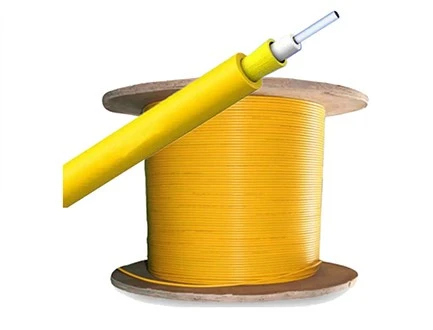

product-433-330

Constructions

Optical fiber	Count	1
	Category	SM/MM
Tight buffer fiber	Diameter(mm)	0.6±0.05	0.85±0.05
	Material	LSZH/PVC
Strength member		Aramid yarn
Outer sheath	Color	Yellow for SM Blue or Orange for OM1/OM2 Aqua for OM3 Auqa or Violet for OM4 Light green for OM5
	Diameter(mm)	1.6±0.1	2.0±0.1	3.0±0.2
	Thickness(mm)	0.3±0.05	0.35±0.05	0.45±0.05
	Material	LSZH/PVC
Net weight(kg/km)		Approx. 2.4	Approx. 3.9	Approx. 6.9
